Ultrasonic Welding Geocell Gravel Ground Grid Slope And Road Construction

Name: Ultrasonic Welding Geocell Gravel Ground Grid Slope And Road Construction
Brand: Geomax
Price: 1 USD

Wholesale Ultrasonic Welding Geocell Gravel Ground Grid Slope And Road Construction from china suppliers

Brand Name : Geomax

Model Number : 1.27-100-445

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Material : High Density Polyethylene

Standard : ASTM or GB/T

Height : 100

Model : 100-445

Geocell Color : Black or Customized

Welding Space : 445mm

Geocell Thickness : 1.27mm

Surface : Perforated

Contact Now

Ultrasonic Welding Geocell Gravel Ground Grid Slop And Road Construction Hdpe Geocell Nanufacturer

Product Introduction

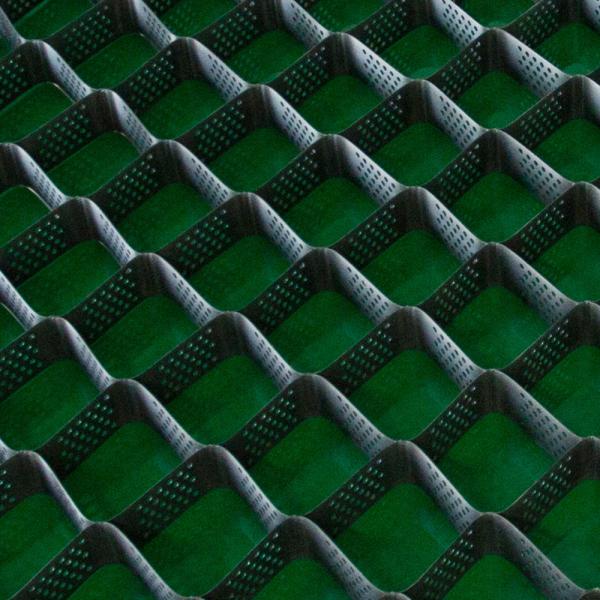

Geocells are three-dimensional cellular structures made from high-density polyethylene (HDPE) or other polymers. Geomax hdpe geocell is designed for the reinforcement of weak soils and has many applications, including retention of soils on steep slopes and highway and rail embankments. The cells of the geocell retain the fill material, while allowing water through.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

Ultrasonic Welding Geocell Gravel Ground Grid Slope And Road Construction

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
